1.44″ E ink Display

< Back to archived products

This product is end of life (EOL)

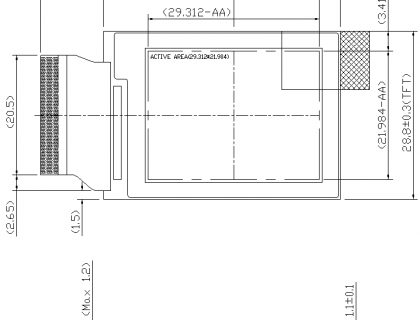

Outline(mm)(HxVxT) 40.512 x 28.80 x 1.00
Active Area (mm) 29.312 x 21.984
Resolution (pixel) 128 x 96
Pixel Pitch 0.229 x 0.229
Pixel Density 111dpi
  • Low Power (model: Aurora Mb)
    • Minimized energy consumption for room temperature applications
    • Our most subscribed display platform
    • Suitable for most indoor operating conditions
  • Wide Temperature (model: Aurora Ma)
    • Consistent optical performance across -20°C to +50°C operating temperature
    • Suitable for freezing operating conditions

Consult with us on the display platform most suitable for your application!

eTC iTC
Full Name external Timing Controller* internal Timing Controller
EPD via SPI interface eTC driver with external waveform iTC driver with internal waveform
Driving Waveform Controlled by MCU Embedded in Driver IC
Customization/ Design Flexibility Higher Lower
Design-in Effort Normal Easier
One Time Programming (OTP**) N/A Yes

Technical Details/Specs

Model Name E1144CS021
Driver IC eTC
Product Specification 1.44” TFT EPD Panel (E1144CS021) (pdf - 1.16Mb)
Development Kits E ink Development Kits
Buy Digi-key
