12.2″ E ink Display – Yellow

< Back to products
Outline(mm)(HxVxT) 251.0 x 204.08 x 1.20
Active Area (mm) 237.6 x 190.08
Resolution (pixel) 960 x 768
Pixel Pitch 0.2475 x 0.2475
Pixel Density 103dpi

Technical Details/Specs

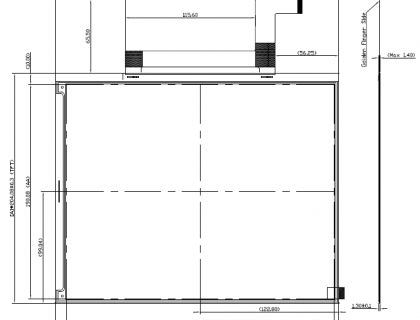

12.2_spectra_drawing
Model Name E2B98GS082
Material Film Spectra Yellow black, white and yellow colors
Driver IC iTC
Driving Document 12.2 inch Spectra Application Note (pdf - 902.5Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
