2.87″ E ink Display – Aurora Mb (V231)

< Back to products
Outline(mm)(HxVxT) 79.0 x 36.7 x 1.2
Active Area (mm) 66.9 x 29.06
Resolution (pixel) 296 x 128
Pixel Pitch 0.23 x 0.23
Pixel Density 112dpi

Technical Details/Specs

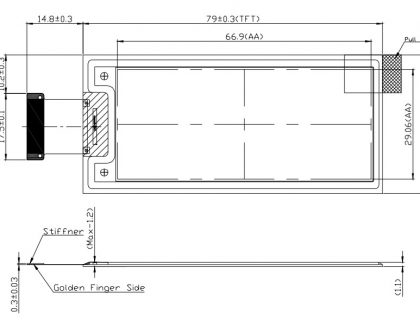

2.87_Aurora_drawing
Model Name E2287CS091
Material Film Black and white colors
Driver IC iTC
Product Specification 2.87 inch Aurora Mb EPD (E2287CS091) (pdf - 1.04Mb)
Driving Document Application Note Small Size Mono (pdf - 647.33Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Digi-key
