4.37″ E ink Display Line-up

< Back to products
Outline(mm)(HxVxT) 115.86 x 46.6 x 1.0
Active Area (mm) 104.16 x 38.192
Resolution (pixel) 480 x 176
Pixel Pitch 0.217 x 0.217
Pixel Density 117dpi

Technical Details/Specs

4.37_spectra_drawing
Model Name E2437FS083
Material Film Spectra (E4) black, white and red colors
Driver IC iTC
Product Specification 4.37 inch Spectra EPD Panel (E2437FS083) (pdf - 1.39Mb)
Driving Document Application Note Middle Size Spectra (pdf - 462.45Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Contact Me

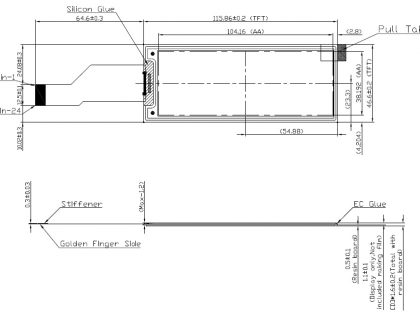

4.37_spectra_drawing
Model Name E2437GS083
Material Film Spectra Yellow black, white and yellow colors
Driver IC iTC
Driving Document Application Note Middle Size Spectra (pdf - 462.45Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Contact Me
