Pervasive Displays adds Rugged EPDs to its Product Portfolio to Address Emerging Application Opportunities
16 Jun 2021

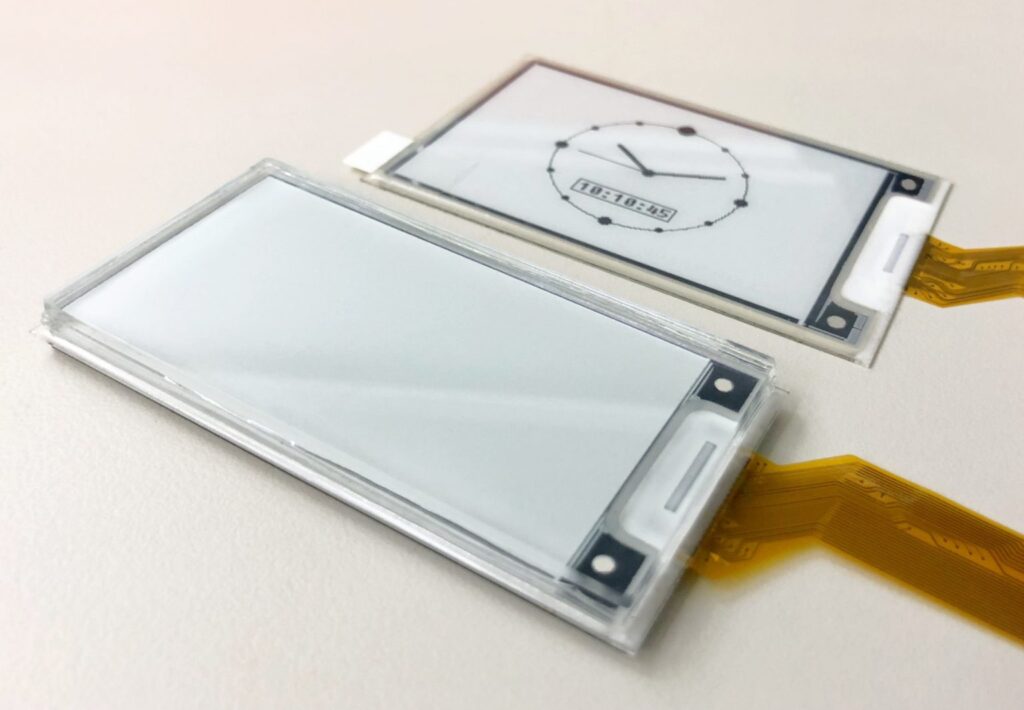

Tainan City, Taiwan – 16 June 2021. Pervasive Displays, recognized specialist in the development and supply of e-paper displays (EPDs), has further expanded the range of potential use cases that its products can support through introduction of the new Armor offering. EPDs based on the company’s unique Armor technology will achieve greater mechanical robustness and improved sunlight readability characteristics. This means they will be optimized for deployment in more challenging semi-outdoor environments –with units capable of prolonged operation, while still delivering industry-leading image quality.
Provided as a custom option, Armor is being made available for all Pervasive Displays’ EPD size formats which range up to 12-inch. Among the places where Armor EPDs will be employed are in the designs for handheld equipment, public information systems and digital signage equipment, plus freight container labelling, shop floor conveyer systems, warehousing operations, etc.

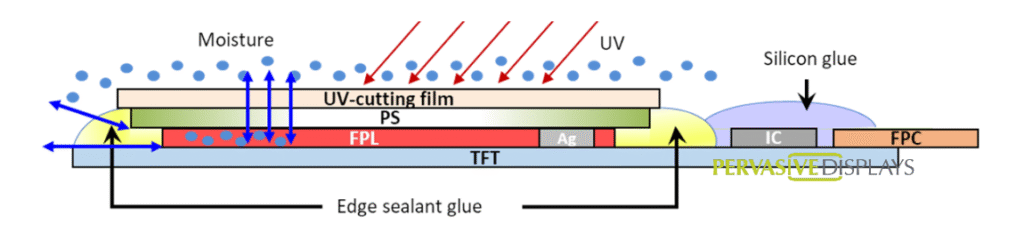

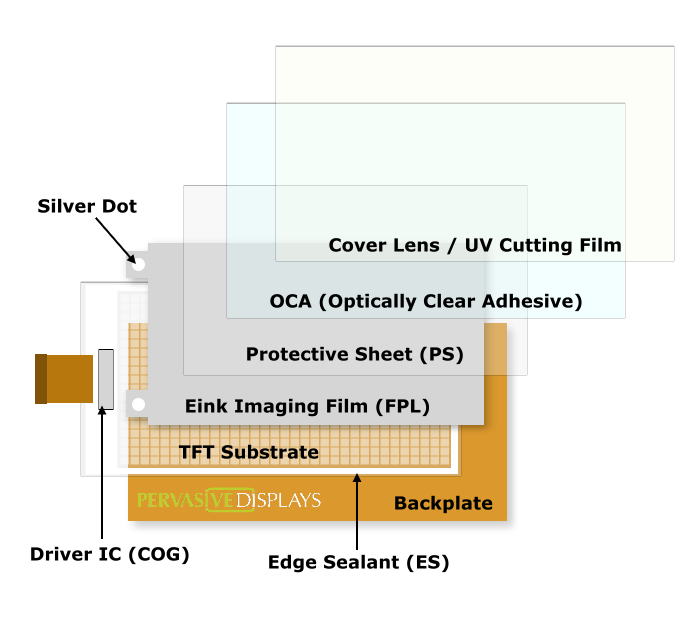

The top surface of each Armor EPD module incorporates an optically-bonded cover lens, which is made from either polymethyl-methacrylate (PMMA) or tempered glass, along with a UV filtering layer. The proprietary protective sheet that Pervasive Displays also applies to the EPD construction makes modules ten times more resistant to humidity than solutions from other manufacturers, as well as safeguarding them from scratches. The thermal properties exhibited by this protective sheet and the accompanying edge sealant (with minimal expansion and contraction) means that cracking due to heat variations will not occur. Consequently, the EPDs are not prone to moisture ingress which would otherwise shorten their working lifespan. A resin board is attached to the rear of the module, which alleviates the risk of deformation when the EPD experiences an external impact force.
For Pervasive Displays’ popular 2.66-inch format EPD, the Armor version can withstand ball drop tests with an impact force of up to 2.105J. This is nearly 40 times more impact resistant than an EPD without Armour which will withstand around 0.053J of impact. Further elevated levels of protection can be achieved by the series via selection of higher cost materials. The ability to cope with low temperatures (reaching down to -25°C) allows Armor EPDs to address the needs of food packaging, laboratory and warehouse settings.
As Alchin Wang, President of Pervasive Displays, explains: “There are a multitude of applications that require an effective way of showing detailed information, but where conventional TFT displays will draw too much current and drain their batteries too quickly. EPDs present an energy efficient alternative. However, until now there have been very limited EPD options on the market that are able to deal with difficult operational conditions, as they are prone to deterioration due to UV and humidity exposure, as well as ongoing wear and tear. This has limited the scope of applications that EPDs can be used in. However, Armor now enables us to supply our customers with a ground-breaking solution unmatched by our competition in terms of robustness, and this will open up new possibilities.”
