Application
- Internet of Things
- Electronic shelf label
- Identification & Access
- 1D/2D barcode
- Smart Tags
- Reusable Transit Item
| Outline(mm) (HxVxT) | 37.32 x 31.8 x 1.1 |
| Active Area (mm) | 27.51 x 27.51 |
| Resolution (pixel) | 152 x 152 |
| Pixel Pitch | 0.181 x 0.181 |
| Pixel Density (dpi) | 140 |
The different types of E ink imaging film
| E ink film type | Temperature range | Colors | Operating temperature | Storage temperature | Remark |
|---|---|---|---|---|---|
| Aurora | Zero above | black, white (BW) | 0°C to +50°C | -20°C to +60°C | Standard monochrome display for most indoor operating conditions. Support fast updates. |
| Aurora -25 | Freezer | black, white (BW) | -25°C to +30°C | -25°C to +60°C | Suitable for freezing operating conditions. |
| Wide Temperature | Wide | black, white (BW) | -15°C to +60°C (Fast Update: 0°C to +50°C) | -20°C to +60°C | New generation of our unique monochrome display and support fast updates. |
| Spectra Red | Zero above | black, white, red (BWR) | 0°C to +40°C | -25°C to +60°C | 3-colors pigments inside. Taking longer time to complete a refresh. |
| Spectra 4 | Zero above | black, white, red, yellow (BWRY) | 0°C to +40°C | -25°C to +60°C | New generation of color display upgraded by BWR to provide additional yellow. |
Driver comparison of iTC and eTC
Driver type | iTC (internal timing controller) | eTC (external timing controller) |
|---|---|---|
| EPD with host board |  |
|
| Waveform location |  |  |
| Driving waveform | Embedded in driver IC (CoG) | Controlled by MCU |
Customization / Design flexibility | Normal | Higher |
| Design-in effort | Easier | Normal |
| Power consumption | Normal | Lower |
| Explanation |
|
|

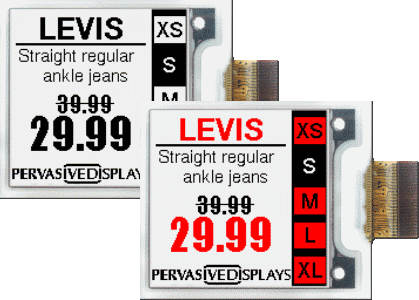

Technical Details/Specs
| Model Name | E2154CS091, E2154CS0C1 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 1.54 inch Aurora Mb EPD (E2154CS0C1) (pdf - 1.95Mb) |
| Driving Document | Application Note Small Size Mono (pdf - 596.8Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Mouser |
| Model Name | E2154PS0C1, E2154PS0C2 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 1.54 inch EPD (E2154PS0C1) Monochrome with Fast Update embedded (pdf - 2.45Mb) |
| Driving Document | Application Note of fast update for small size mono EPDs (pdf - 656.51Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Digi-key Mouser |

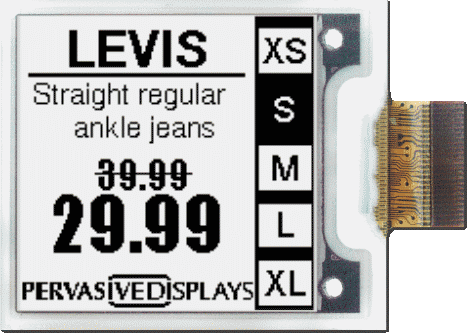

| Model Name | E2154KS0C1 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 1.54 inch EPD (E2154KS0C1) wide temperature with Fast Update embedded (pdf - 1.88Mb) |
| Driving Document | Application Note for small sizes of wide temperature EPDs (pdf - 948.09Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Digi-key Mouser |
| Model Name | E2154JS0C1 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 1.54 inch Spectra EPD (E2154JS0C1) (pdf - 1.14Mb) |
| Driving Document | Application Note Small Size Spectra (pdf - 604.64Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Digi-Key Mouser |

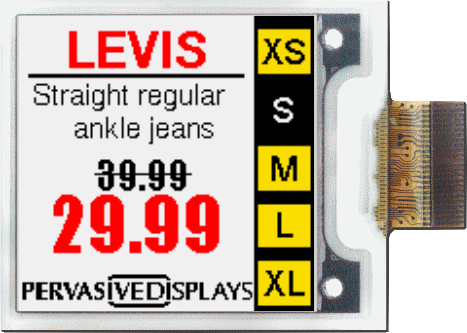

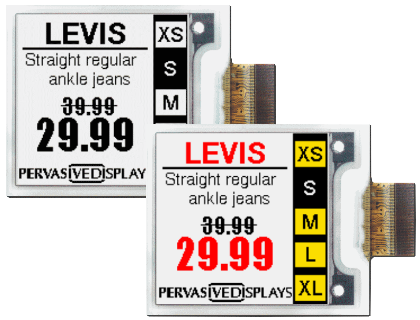

| Model Name | E2154QS0F1 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 1.54 inch Spectra 4 EPD (E2154QS0F1) (pdf - 2.94Mb) |
| Driving Document | Application Note Small Size for Spectra 4 (pdf - 735.53Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Digi-Key Mouser |
