2.13″ E-ink displays

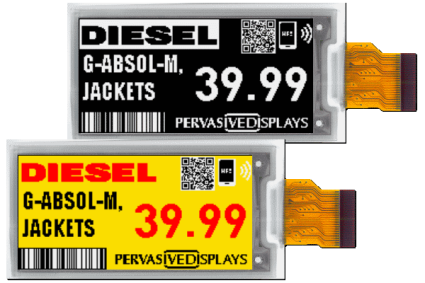

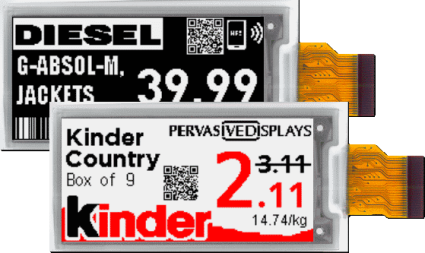

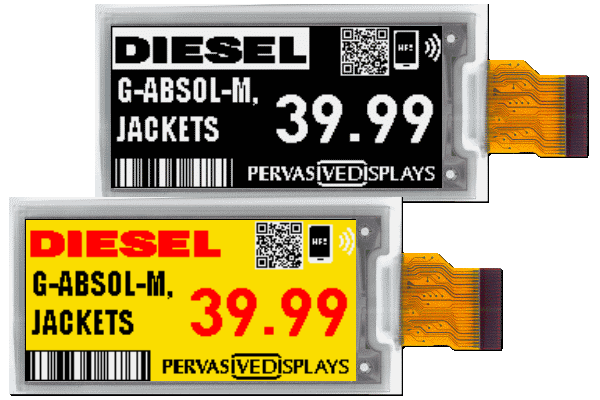

2.13 inch BW iTC E ink Display by Pervasive

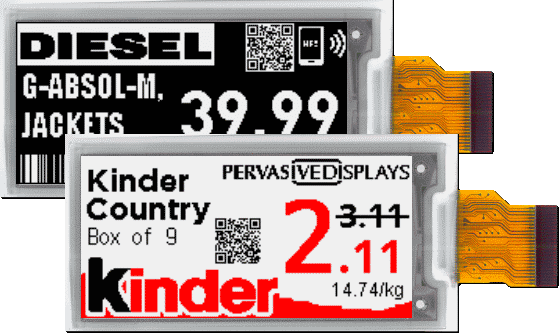

2.13 inch BWR iTC E ink Display by Pervasive

How to

How to get this EPD to work with EXT3-1 Kit?
Driving code on GitHub for Global Update or Fast Update

Application

Internet of Things
Electronic shelf label
Identification & Access
1D/2D barcode
Smart Tags
Reusable Transit Item

Amazon (3 colors bundle kit) Amazon (monochrome bundle kit)

Outline(mm) (HxVxT)	59.2 x 29.2 x 1.1
Active Area (mm)	48.548 x 23.712
Resolution (pixel)	212 x 104
Pixel Pitch	0.229 x 0.228
Pixel Density (dpi)	111

The different types of E ink imaging film

E ink film type	Alias	Temperature range	Colors	Operating temperature	Storage temperature	Remark
Aurora	Aurora Mb, V231	Zero above	black, white (BW)	0°C to +50°C	-20°C to +60°C	Our most subscribed display platform. Suitable for most indoor operating conditions. Support fast updates.
Aurora -25	V430	Freezer	black, white (BW)	-25°C to +30°C	-25°C to +60°C	Suitable for freezing operating conditions.
Wide Temperature	W.T.	Wide	black, white (BW)	-15°C to +60°C (Fast Update: 0°C to +50°C)	-20°C to +60°C	New generation of imaging film of monochrome display and support fast updates.
Spectra Red	R2.0	Zero above	black, white, red (BWR)	0°C to +40°C	-20°C to +60°C	3-colors pigments inside. Taking longer time to complete a refresh.

Driver comparison of iTC and eTC

Driver type	iTC (internal timing controller)	eTC (external timing controller)
EPD with host board
Waveform location
Driving waveform	Embedded in driver IC (CoG)	Controlled by MCU
Customization / Design flexibility	Normal	Higher
Design-in effort	Easier	Normal
Power consumption	Normal	Lower
Explanation	The driving waveforms (LUTs, lookup tables) have been pre-programmed in the driver IC. Developers just need to send image data and update command to complete the screen refresh. If developers need special support to change the waveforms, extra LUTs can be sent externally.	Following our driving guide, developers can fully control the driving flow and stage from the MCU. Developers need to send converted image data at each specific stage. Taking longer time to design-in. Longer initial, power-up and power-off periods. (500ms above)

Technical Details/Specs

Model Name	E2213CS091, E2213CS0C1, E2213CS0C2
Driver IC	Internal driving (iTC)
Product Specification	2.13 inch iTC EPD (E2213CS0C2) (pdf - 2.01Mb)
Driving Document	Application Note Small Size Mono (pdf - 596.8Kb)
Development Kits	EPD Extension Kit Gen 3 (EXT3-1)
Buy	Digi-key Mouser

Model Name	E2213PS0E1, E2213PS0E2
Driver IC	Internal driving (iTC)
Product Specification	2.13 inch iTC EPD (E2213PS0E1) Fast Update embedded (pdf - 2.58Mb)
Driving Document	Application Note of fast update for small size mono EPDs (pdf - 656.51Kb)
Development Kits	EPD Extension Kit Gen 3 (EXT3-1)
Buy	Digi-key Mouser

Model Name	E2213KS0E1
Driver IC	Internal driving (iTC)
Product Specification	2.13 inch EPD (E2213KS0E1) wide temperature with Fast Update embedded (pdf - 1.84Mb)
Driving Document	Application Note for small sizes of wide temperature EPDs (pdf - 842.26Kb)
Development Kits	EPD Extension Kit Gen 3 (EXT3-1)
Buy	Digi-key Mouser

Model Name	E2213HS091
Driver IC	Internal driving (iTC)
Product Specification	2.13 inch Freezer EPD Panel (E2213HS091) (pdf - 1.1Mb)
Driving Document	Application Note Small Size Mono (pdf - 596.8Kb)
Development Kits	EPD Extension Kit Gen 3 (EXT3-1)
Buy	Digi-key

Model Name	E2213JS0C1
Driver IC	Internal driving (iTC)
Product Specification	2.13 inch Spectra EPD Panel (E2213JS0C1, E2213JS0C2) (pdf - 1.46Mb)
Driving Document	Application Note Small Size Spectra (pdf - 604.64Kb)
Development Kits	EPD Extension Kit Gen 3 (EXT3-1)
Buy	Digi-Key Mouser
