How to
- How to get this EPD to work with EXT3-1 Kit?
- Driving code on GitHub for Global Update or Fast Update
Application
- Internet of Things
- Electronic shelf labels
- Identification & Access
- 1D/2D barcode
- Smart Tags
- Reusable Transit Item

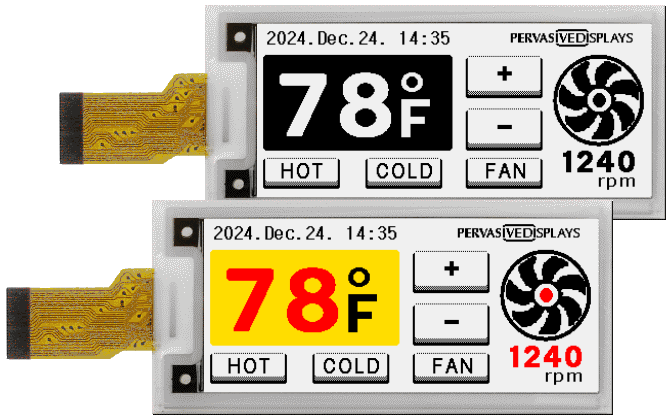

| Outline(mm) (HxVxT) | 79.484 x 35.568 x 0.85 |
| Active Area (mm) | 67.584 x 29.568 |
| Resolution (pixel) | 384 x 168 |
| Pixel Pitch | 0.176 x 0.176 |
| Pixel Density (DPi) | 144 |
The different types of E ink imaging film
| E ink film type | Temperature range | Colors | Operating temperature | Storage temperature | Remark |
|---|---|---|---|---|---|
| Aurora | Zero above | black, white (BW) | 0°C to +50°C | -20°C to +60°C | Standard monochrome display for most indoor operating conditions. Support fast updates. |
| Aurora -25 | Freezer | black, white (BW) | -25°C to +30°C | -25°C to +60°C | Suitable for freezing operating conditions. |
| Wide Temperature | Wide | black, white (BW) | -15°C to +60°C (Fast Update: 0°C to +50°C) | -25°C to +70°C | New generation of our unique monochrome display and support fast updates. |
| Spectra Red | Zero above | black, white, red (BWR) | 0°C to +40°C | -25°C to +60°C | 3-colors pigments inside. Taking longer time to complete a refresh. |
| Spectra 4 | Zero above | black, white, red, yellow (BWRY) | 0°C to +40°C | -25°C to +60°C | New generation of color display upgraded by BWR to provide additional yellow. |
Technical Details/Specs
| Model Name | E2290KS0F1 |
| Driver IC | Internal driving (iTC) |
| Product Specification | 2.90 inch EPD (E2290KS0F1) wide temperature with Fast Update embedded (pdf - 2.45Mb) |
| Driving Document | Application Note for small sizes of wide temperature EPDs (pdf - 999.69Kb) |
| Development Kits | EPD Extension Kit Gen 3 (EXT3-1) |
| Buy | Digi-Key Mouser |
