This product is end of life (EOL)
Application
- Internet of Things
- Electronic shelf label
- Identification & Access
- 1D/2D barcode
- Smart Tags
- Reusable Transit Item
| Outline(mm)(HxVxT) | 79.0 x 36.7 x 1.2 |
| Active Area (mm) | 66.9 x 29.06 |
| Resolution (pixel) | 296 x 128 |
| Pixel Pitch | 0.23 x 0.23 |
| Pixel Density | 112dpi |
- Low Power (model: Aurora Mb)
- Minimized energy consumption for room temperature applications
- Our most subscribed display platform
- Suitable for most indoor operating conditions
- Wide Temperature (model: Aurora Ma)
- Consistent optical performance across -20°C to +50°C operating temperature
- Suitable for the wide operating conditions
- Freezer Environment (model: Aurora -25)
- Consistent optical performance across -25°C to +10°C operating temperature
- Suitable for freezing operating conditions

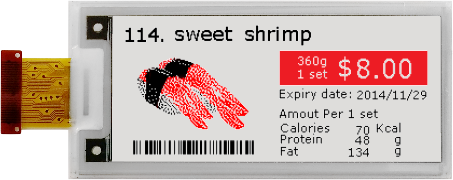

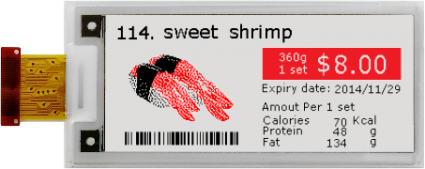

- 3-Colours (model: Spectra and Spectra Yellow)
- Spectra is Black, White and Red pigments inside
- Spectra Yellow is Black, White and Yellow pigments inside
Consult with us on the display platform most suitable for your application!

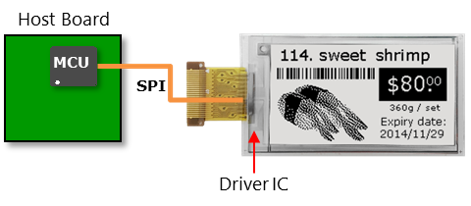

| eTC | iTC | |
|---|---|---|
| Full Name | external Timing Controller* | internal Timing Controller |
 |
 |
 |
| Driving Waveform | Controlled by MCU | Embedded in Driver IC |
| Customization/ Design Flexibility | Higher | Lower |
| Design-in Effort | Normal | Easier |
| One Time Programming (OTP**) | N/A | Yes |
Technical Details/Specs
| Model Name | E2287FS091 |
| Driver IC | EPD only |
| Product Specification | 2.87 inch Spectra EPD Panel (E2287FS091) (pdf - 730.55Kb) |
| Driving Document | Application Note Small Size Spectra (pdf - 604.64Kb) |
| Development Kits | EPD Extension Kit Gen 2 (EXT2) |
