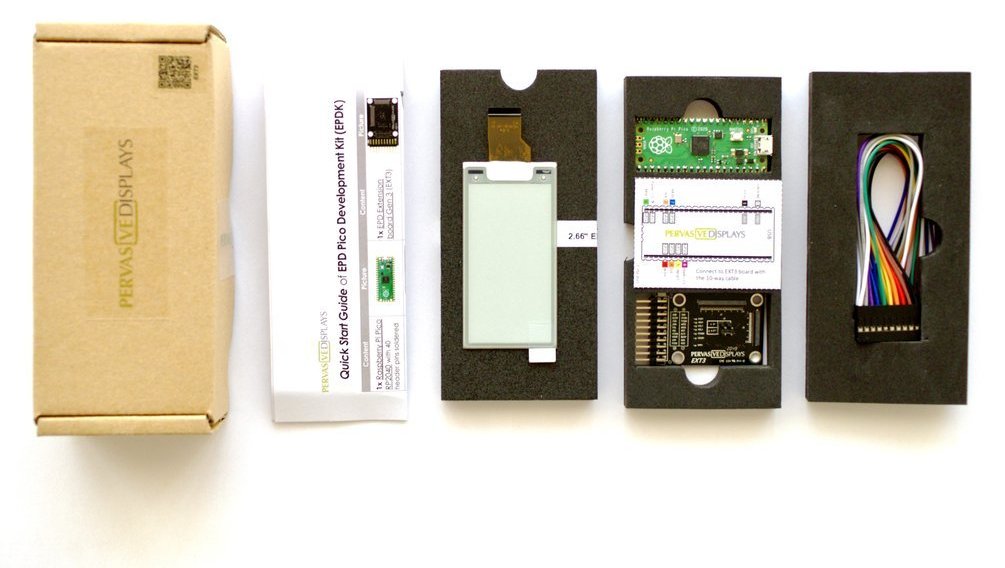

Kit Contents
-
EPD Extension board Gen 3 (EXT3) board
-

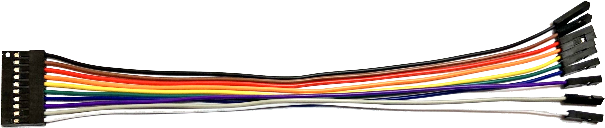

20 pins of bridging cable, 15cm
-
Raspberry Pi Pico RP2040 (with pin header)
-

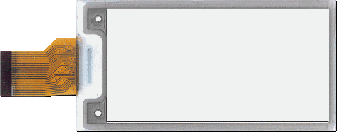

2.66″ E ink Display – Aurora Mb (V231)
-
Pin mapping label

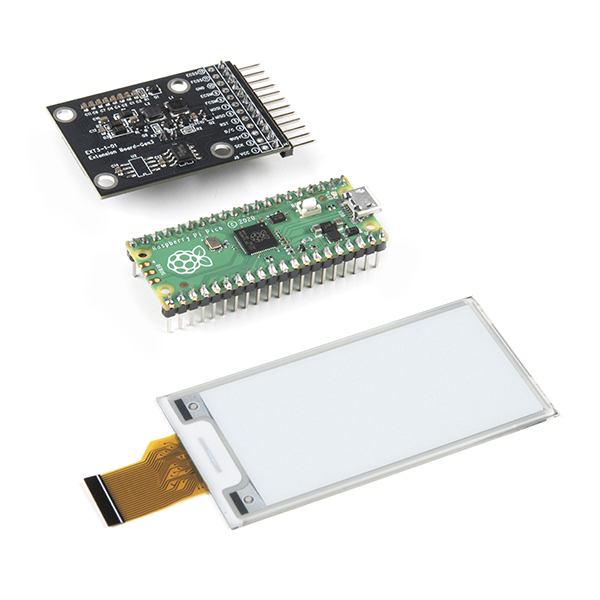

EPD Pico Kit (EPDK) is our new development kit consisting of EPD Extension board (EXT3), Raspberry Pi Pico (RP2040) and 2.66 inch E ink Display with built-in Pervasive Displays Library Suite (PDLS) to provide you a powerful, rich and comprehensive key parts to kick-start your low power display devices for any interactive, visual experience, ultra-fast refresh and eco-friendly IoT (Internet of Things) and HMI (Human Machine Interface) applications.
Features
- Step by step easy to use by quick start guide and wiring from the pin mapping label
- Online user guide and reference manual for exploring the rich graphic elements and unlimited possibility
- Support the full range of our E ink displays
- A variety of expansion options to meet your development needs and use cases
The Arduino compatible library is available at PDLS_EXT3_Basic
Model no. B3000MS043
The Arduino compatible library is available at PDLS_EXT3_Basic
The screen layout was made by Advanced and Commercial version of PDLS
