3.7″ E ink Display

< Back to products
Outline(mm)(HxVxT) 92.99 x 53.0 x 1.5
Active Area (mm) 81.536 x 47.04
Resolution (pixel) 240 x 416
Pixel Pitch 0.196 x 0.196
Pixel Density 130dpi

Technical Details/Specs

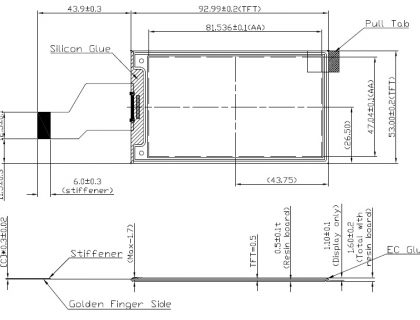

3.7_spectra_drawing
Model Name E2370FS081
Material Film Spectra (E4) black, white and red colors
Driver IC iTC
Product Specification 3.7 inch Spectra EPD Panel (E2370FS081) (pdf - 1.9Mb)
Driving Document ApplicationNote Middle Size Spectra (pdf - 462.45Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Contact Me
