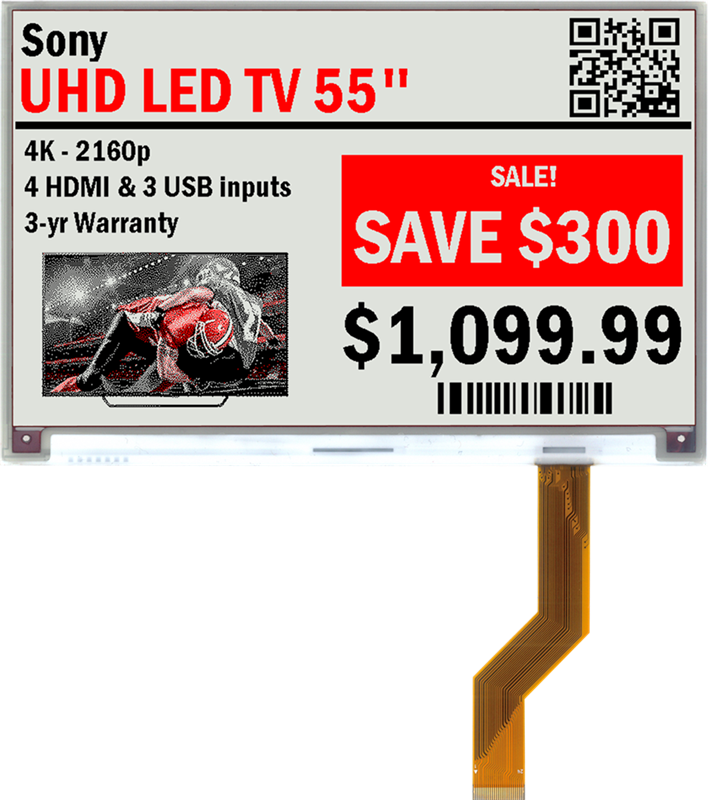

7.4″ E ink Display – Spectra (E4)

< Back to products
Outline(mm)(HxVxT) 111.0 x 169.0 x 2.5
Active Area (mm) 96.96 x 161.6
Resolution (pixel) 480 x 800
Pixel Pitch 0.202 x 0.202
Pixel Density 126dpi

Technical Details/Specs

7.4_Spectra_drawing
Model Name E2741FS081
Material Film Spectra (E4) black, white and red colors
Driver IC iTC
Product Specification 7.4" TFT EPD Panel (E2741FS081) (pdf - 1.17Mb)
Driving Document ApplicationNote EPD740 Spectra with G2.1_171024 (pdf - 811.52Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Digi-key
