3.70″ E-ink displays

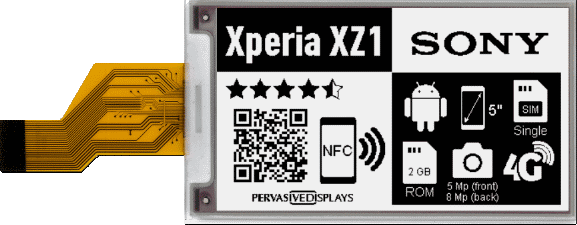

3.7 inch BW iTC E ink Display by Pervasive

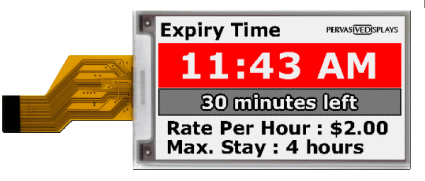

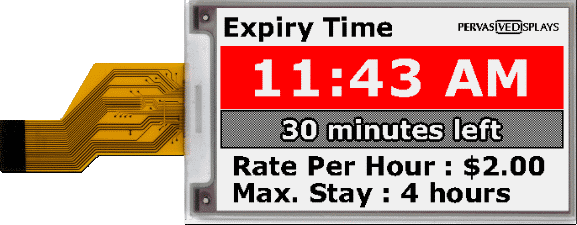

3.7 inch BWR iTC E ink Display by Pervasive

How to

Application

  • Internet of Things
  • Electronic shelf labels
  • Identification & Access
  • 1D/2D barcode
  • Smart Tags
  • Reusable Transit Item
Outline(mm) (HxVxT) 92.99 x 53.0 x 1.5
Active Area (mm) 81.536 x 47.04
Resolution (pixel) 240 x 416
Pixel Pitch (mm) 0.196 x 0.196
Pixel Density (dpi) 130

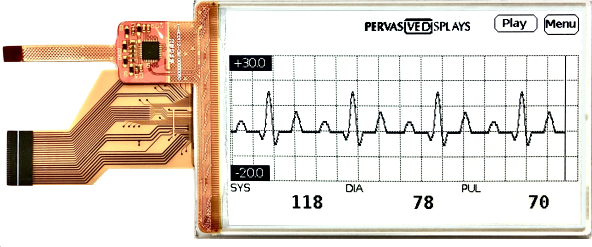

Touch sensor type (for touch) Capacitive touch /GF1
Surface Hardness (for touch) 2H
Surface Treatment (for touch) Anti-Glare

The different types of E ink imaging film

E ink film typeTemperature rangeColorsOperating
temperature		Storage
temperature		Remark
AuroraZero aboveblack, white
(BW)		0°C to +50°C-20°C to +60°CStandard monochrome display for most indoor operating conditions.
Support fast updates.
Aurora -25Freezerblack, white
(BW)		-25°C to +30°C-25°C to +60°CSuitable for freezing operating conditions.
Wide TemperatureWideblack, white
(BW)		-15°C to +60°C
(Fast Update: 0°C to +50°C)		-25°C to +70°CNew generation of our unique monochrome display and support fast updates.
Spectra RedZero aboveblack, white, red
(BWR)		0°C to +40°C-25°C to +60°C3-colors pigments inside.
Taking longer time to complete a refresh.
Spectra 4Zero aboveblack, white, red, yellow
(BWRY)		0°C to +40°C-25°C to +60°CNew generation of color display upgraded by BWR to provide additional yellow.

Driver comparison of iTC and eTC

Driver type
iTC (internal timing controller)
eTC (external timing controller)
EPD with host board
EPD with host board
Waveform location
iTC waveform
eTC waveform
Driving waveformEmbedded in driver IC (CoG)Controlled by MCU
Customization / Design flexibility
NormalHigher
Design-in effortEasierNormal
Power consumptionNormalLower
Explanation


  • The driving waveforms (LUTs, lookup tables) have been pre-programmed in the driver IC. Developers just need to send image data and update command to complete the screen refresh.

  • If developers need special support to change the waveforms, extra LUTs can be sent externally.




  • Following our driving guide, developers can fully control the driving flow and stage from the MCU.

  • Developers need to send converted image data at each specific stage.

  • Taking longer time to design-in.

  • Longer initial, power-up and power-off periods. (500ms above)

Technical Details/Specs

Model Name E2370PS0C1
Driver IC With touch panel
Product Specification 3.7 inch Monochrome EPD Panel (E2370PS0C1) with Fast Update embedded (pdf - 1.33Mb)
Driving Document Application Note of fast update for small size mono EPDs (pdf - 656.51Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key
Model Name E2370KS0C1
Driver IC With touch panel
Product Specification 3.7 inch Monochrome EPD (E2370KS0C1) wide temperature with Fast Update embedded (pdf - 2.33Mb)
Driving Document Application Note for small sizes of wide temperature EPDs (pdf - 999.69Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key Mouser
Model Name TP370PGH01
Driver IC With touch panel
Product Specification 3.7 inch Monochrome EPD (TP370PGH01) with Fast Update embedded and touch panel (pdf - 2.37Mb)
Driving Document Application Note of fast update for small size mono EPDs (pdf - 656.51Kb)
Development Kits Touch Expansion Board for EXT3 (EXT3-Touch)
Buy Digi-key Mouser
Model Name E2370JS0C1
Driver IC With touch panel
Product Specification 3.7 inch Spectra Red EPD Panel (E2370JS0C1) (pdf - 1.54Mb)
Driving Document Application Note Small Size Spectra (pdf - 604.64Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key Mouser
