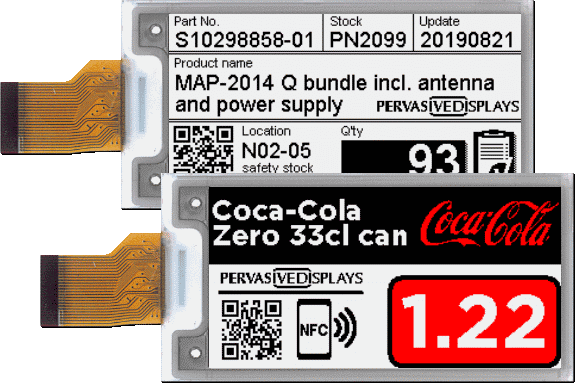

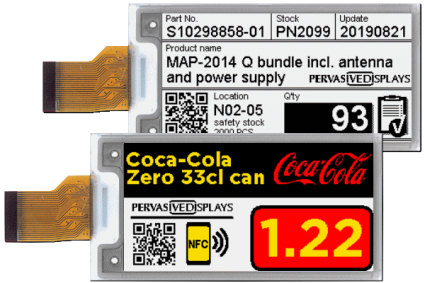

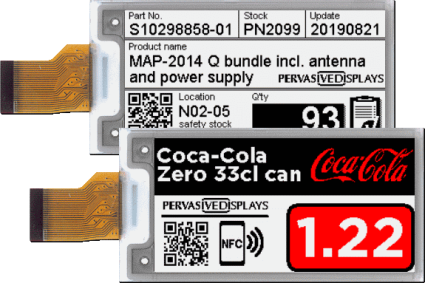

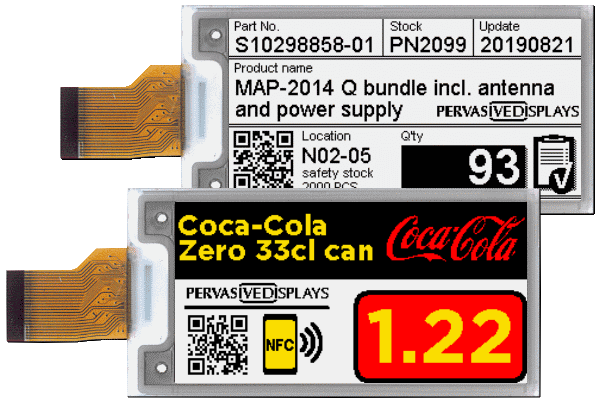

2.66″ E-ink displays

< Back to products
Outline(mm) (HxVxT) 71.8 x 36.3 x 1.1
Active Area (mm) 60.09 x 30.7
Resolution (pixel) 296 x 152
Pixel Pitch (mm) 0.203 x 0.202
Pixel Density (dpi) 125

The different types of E ink imaging film

E ink film typeAliasTemperature rangeColorsOperating
temperature
Storage
temperature
Remark
AuroraAurora Mb, V231Zero aboveblack, white
(BW)
0°C to +50°C-20°C to +60°COur most subscribed display platform.
Suitable for most indoor operating conditions.
Support fast updates.
Aurora -25V430Freezerblack, white
(BW)
-25°C to +30°C-25°C to +60°CSuitable for freezing operating conditions.
Wide TemperatureW.T.Wideblack, white
(BW)
-15°C to +60°C
(Fast Update: 0°C to +50°C)
-25°C to +60°CNew generation of imaging film of monochrome
display and support fast updates.
Spectra RedR2.0Zero aboveblack, white, red
(BWR)
0°C to +40°C-20°C to +60°C3-colors pigments inside.
Taking longer time to complete a refresh.

Driver comparison of iTC and eTC

Driver type
iTC (internal timing controller)
eTC (external timing controller)
EPD with host board
EPD with host board
Waveform location
iTC waveform
eTC waveform
Driving waveformEmbedded in driver IC (CoG)Controlled by MCU
Customization / Design flexibility
NormalHigher
Design-in effortEasierNormal
Power consumptionNormalLower
Explanation


  • The driving waveforms (LUTs, lookup tables) have been pre-programmed in the driver IC. Developers just need to send image data and update command to complete the screen refresh.

  • If developers need special support to change the waveforms, extra LUTs can be sent externally.




  • Following our driving guide, developers can fully control the driving flow and stage from the MCU.

  • Developers need to send converted image data at each specific stage.

  • Taking longer time to design-in.

  • Longer initial, power-up and power-off periods. (500ms above)


Technical Details/Specs

Model Name E2266CS0C1, E2266CS0C2
Driver IC Internal driving (iTC)
Product Specification 2.66 inch Monochrome EPD Panel (E2266CS0C1, E2266CS0C2) (pdf - 1.38Mb)
Driving Document Application Note Small Size Mono (pdf - 596.8Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key Mouser
Model Name E2266PS0C1, E2266PS0C2
Driver IC Internal driving (iTC)
Product Specification 2.66 inch iTC EPD (E2266PS0C2) Fast Update embedded (pdf - 2.46Mb)
Driving Document Application Note of fast update for small size mono EPDs (pdf - 656.51Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key Mouser
Model Name E2266HS092
Driver IC Internal driving (iTC)
Product Specification 2.66 inch Freezer EPD Panel (E2266HS092) (pdf - 1.13Mb)
Driving Document Application Note Small Size Mono (pdf - 596.8Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key
Model Name E2266JS0C1
Driver IC Internal driving (iTC)
Product Specification 2.66 inch Spectra EPD Panel (E2266JS0C1, E2266JS0C2) (pdf - 1.31Mb)
Driving Document Application Note Small Size Spectra (pdf - 604.64Kb)
Development Kits EPD Extension Kit Gen 3 (EXT3-1)
Buy Digi-key Mouser
