2.71″ E ink Display – Aurora Mb (V231)

< Back to products
Outline(mm)(HxVxT) 70.42 x 45.80 x 1.00
Active Area (mm) 57.288 x 38.192
Resolution (pixel) 264 x 176
Pixel Pitch 0.217 x 0.217
Pixel Density 117dpi

Technical Details/Specs

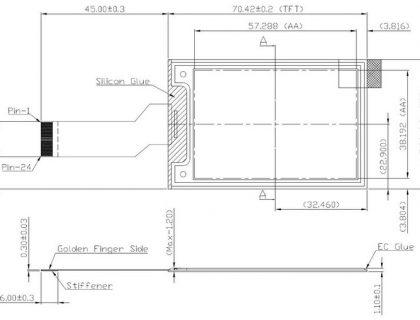

2.71i_spectra_drawing
Model Name E2271CS091
Material Film Aurora Mb (V231) black and white colors
Driver IC iTC
Product Specification 2.71 inch iTC Aurora Mb EPD (E2271CS091) (pdf - 1.07Mb)
Driving Document Application Note Small Size Mono (pdf - 647.33Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Digi-key
