4.2″ E ink Display – Aurora Mb (V231)

< Back to products

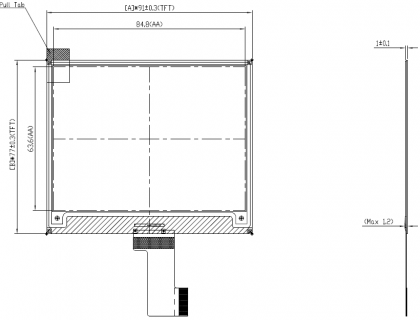

Outline(mm)(HxVxT) 91.0 x 77.0 x 1.2
Active Area (mm) 84.8 x 63.6
Resolution (pixel) 400 x 300
Pixel Pitch 0.212 x 0.212
Pixel Density 120dpi

Technical Details/Specs

Model Name E2417CS053
Material Film Aurora Mb (V231) black and white colors
Driver IC iTC
Product Specification 4.2” TFT EPD Panel (E2417CS053) (pdf - 1.4Mb)
Driving Document Application Note Small Size Mono (pdf - 647.33Kb)
Development Kits EPD Extension Kit Gen 2 (EXT2)
Buy Contact Me
